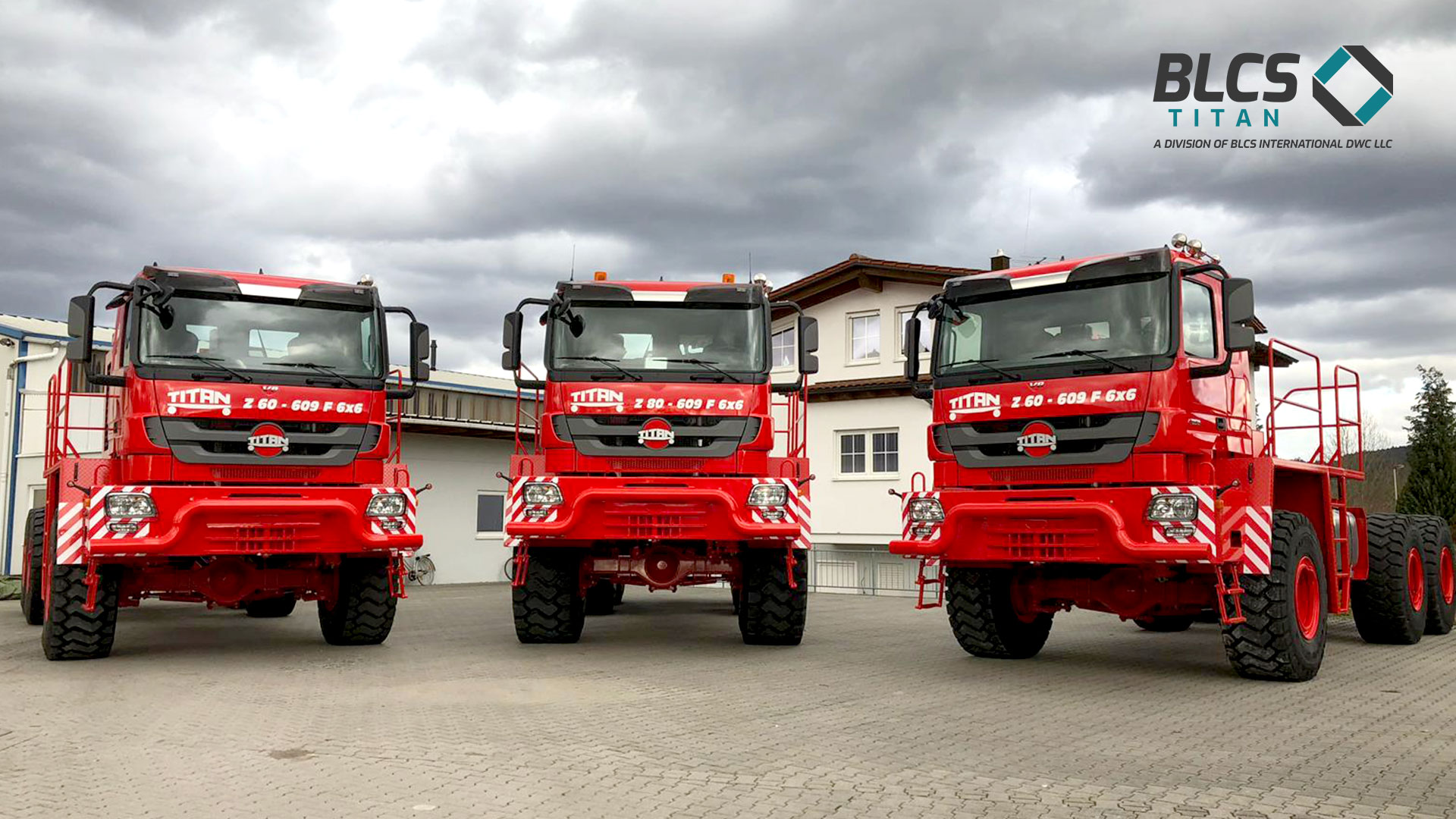

TITAN Heavy Duty Transport
Short facts:
- Heavy-Duty tractors for combined weights up to 1.000MT
- Configuration 6x6 (Z52) and 8x8 (Z64)
- TITAN Heavy-Duty frame (Double frame)
- Mercedes-Benz Drive Train & Cabin, Electric system (maintenance can be performed by every MB- Diagnosis)
- Converter Clutch unit for better Drive – Off climbing performance
- Kessler Drive Axles
- Z52: 1 x 12 MT front & 2 x 20 MT rear
- Z64: 2 x 12 MT front & 2 x 20 MT rear
- Tyres, wheels and high-capacity drive train allow heavy haulage transport on public roads and unsurfaced terrains Tire Pressure Control Systems
- Cooling guaranteed up to +55o C
Options:
Technical Information
| Powertrain: | TITAN Z52 | TITAN Z64 |
|---|---|---|
| Engine: | Mercedes Benz OM502 LA | Mercedes Benz OM502 LA |
| 609 hp. (448 kw) | 609 hp. (448 kw) | |
| 2400 Nm @ 1088 rpm | 2400 Nm @ 1088 rpm | |
| Transmission | Mercedes Benz G240 | Mercedes Benz G240 |
| 16 gears | 16 gears | |
| With WSK (converter-clutch unit) + retarder | With WSK (converter-clutch unit) + retarder | |
| Chassis: | Kessler Axles | Kessler Axles |
| Powered steering axle 1 x 12MT front | Powered steering axle 2 x 12MT front | |
| 2 X 20MT rear | 2 X 20MT rear | |
| Weights: | ||
| Tare: | 22 MT | 23 MT |
| GVW: | 52 MT | 64 MT |
| Dimensions: | ||
| Height: | 4.000mm | 4.000 mm |
| Length: | 10.000mm | 10.000 mm |
| Width: | 3.100mm | 3.100 mm |
