oilfield bed trucks

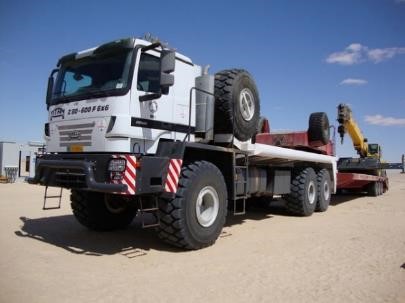

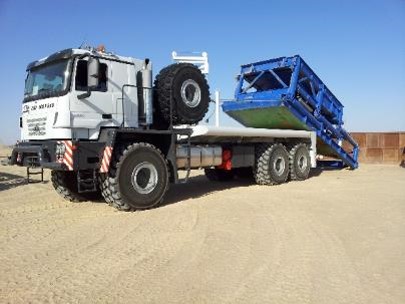

Especially built for the extreme needs in the Oilfield enviroment, the TITAN Oilfield Bed Truck is the ideal solution for moving rigs and heavy Cargo.
Short facts:
- Truck tractors / Platform vehicles with winch for material transport according to customers requirements
- Fifth wheel coupling for trailers / rig move (optional in flip flop design)
- Mercedes-Benz Drive Train & Cabin, Electric system (maintenance can be performed by every MB- Diagnosis)
- Gross Vehicle Weight up to 95 MT (up to 25 MT on drive axle)
- Possible coupling weight up to 70 MT
- Sand tires size 29.5 R 25 ideal for operation in deserts and on oilfields
- Special Heavy-Duty frame (Double frame)
- Allison automatic gearbox with torque converter (retarder as an option) for excellent climbing performance
- Pull-force up to 500MT
- Tire Pressure Control Systems
- Cooling guaranteed up to +55o C
Options:
- Oilfield Plattform (length against customer requirements)
- Fifth wheel coupling in "Flip-Flop" version
- Hydraulic winch
- Gin Pole
Technical Information
| Powertrain: | |
| Engine: | Mercedes Benz OM502 LA |
| 609 hp. (448 kw) | |
| 2400 Nm @ 1088 rpm | |
| Transmission | Allison 4700 Series (optional retarder) |
| 7 speed | |
| with 2 speed transfer case | |
| Chassis: | Kessler Axles |
| Powered steering axle up to 25MT front | |
| 2 X up to 35MT rear | |
| Weights: | |
| Tare: | 30 MT |
| GVW: | 95 MT |
| Dimensions: | |
| Height: | 4.200 mm (depends on selected platform) |
| Length: | 11.500 mm |
| Width: | 3.500 mm |
